Advantech UPOS-211 Series ( Available in Celeron , i3,i5 )
- 15" TFT LCD (LED backlight) with 5 wire Resistive or PCap Touch
- Built-in Intel Core-i3 or Core-i5

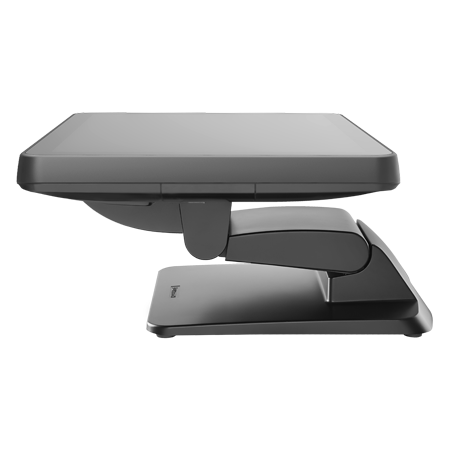

- Stylish design with dual hinge, thinner boarder, slim screen

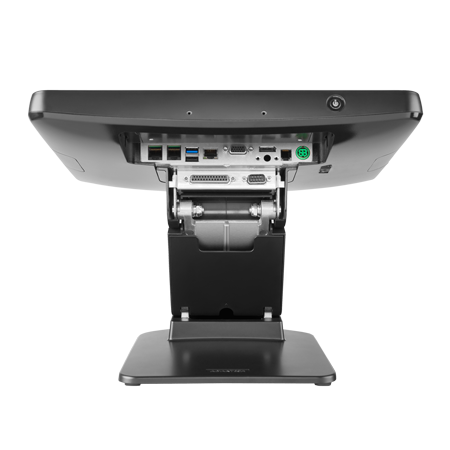

- Clear Cable Management
- Low power & fanless operation without heat ventilation holes
- Easy access to key components
- Easy peripheral mount design integrated
- Device Options: 2nd Display, MSR, VFD, RFID, Barcode Scanner
- Fully support WISE-PaaS/RMM

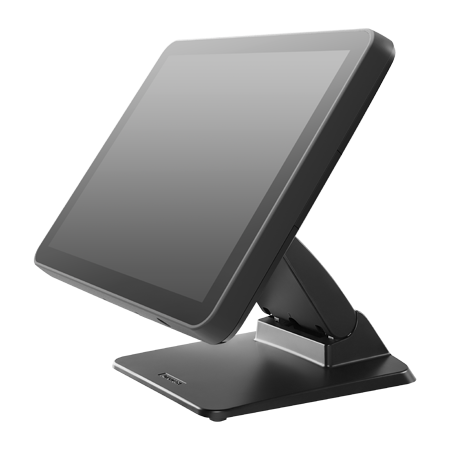

UPOS-211 is an all-in-one point-of-sale (POS) system that features a small footprint and dual-hinge design, making it ideal for countertops and limited-space installations. Powered by an Intel® Core I Processor, UPOS-211 ensures high-performance computing and reliable data processing, while supporting flexible customization for diverse applications.
| Model | UPOS-211DPX | UPOS-211D | UPOS-211F |
|---|---|---|---|
| Processor | Intel Bay Trail Quad Core J1900, 2GHz up to 2.42GHz | Skylake-U, CORE i5-6300U/CORE i3-6100U/Celeron 3955U | |
| Memory | DDR3L-1333, 8G, 1 x 204 pin SO-DIMM | DDR4-2133, 16G, 1 x 260 pin SO-DIMM | |
| Storage | 1 x 2.5" SATA HDD/SSD connector, SATA2 (3.0Gb/S); 1 x M.2 SSD |
1 x 2.5" SATA HDD/SSD connector, SATA2 (3.0Gb/S) | 1 x 2.5" SATA HDD/SSD connector, SATA3 (6.0Gb/S) |
| Panel | 15" TFT LCD Display (1024 x 768), 300 cd/m2 | ||
| Touch Screen | 115", Projected Capacitive Touch Panel (PCAP. Flat Glass) | 15", Analog Resistive 5-wires (Res. Flat Glass) / Projected Capacitive Touch Panel (PCAP. Flat Glass) Light Transmission: Res. Touch 80% ±5% / Pcap Touch 85% ±3% | |
| Bus Expansion | 1 x M.2 2230 E-KEY for Wifi&BT 1 x M.2 2242 B-KEY for SATA | 1 x Mini PCIe (for Wifi or 3G), shared with mini SATA connector | |
| Audio | 1 x 2W speaker installed. 1 x Line out | 1 x 2W speaker installed. 1 x Line out (optional) | |
| Power Supply | 60W power adapter | ||
| Serial Port | External: 3 x COM RS232 ports on I/O board, COM1 support 5V & 12V by order, COM2/COM3 no power Internal: 1 x COM port, COM4 for VFD |
External: 2 x COM RS232 ports on I/O board via RJ-48 connector, COM1 / COM2 support 5V & 12V by order Internal: 4 x COM port, COM3 for 5W Res. touch, COM4, COM5 support 5V &12V by order, COM6 no power |
|

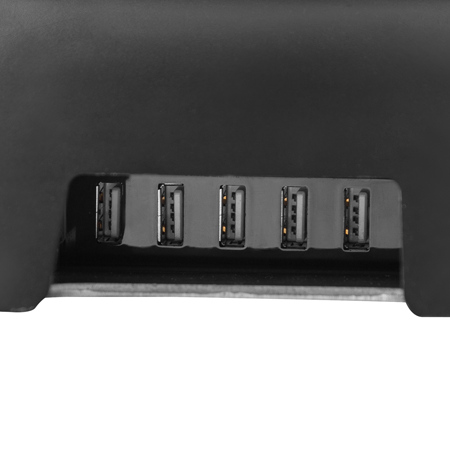

| USB Port | External: 4 x USB2.0; 1 x USB3.0; 1 x Type C Internal: 1 x USB2.0 (for PCAP touch) |
External: 2 x USB2.0; 1 x USB3.0; 5 x USB 2.0 ports (optional) Internal: 3 x USB2.0 (1x USB for PCAP touch) |
External: 2 x USB3.0, 1 x USB2.0; 5 x USB2.0 (Optional) Internal: 3 x USB2.0 (1 x USB for PCAP touch) |
| Ethernet | LAN controller: Realtek RTL8111G-CG, 1x RJ-45 Gigabit Ethernet | LAN controller: Intel WGI219LM, 1x RJ-45 Gigabit Ethernet | |
| Display Output | External: 1 x VGA Internal: 1 x VGA (for 10" 2nd Display) | 1 x VGA, 1 x DP | |
| Cash Drawer | 1 x RJ11, cash drawer, 24V default, 12V by order | ||
| PS2 | 1 x PS2 (for MSR only) | ||
| Parallel Port | - | 1 x LPT (optional) | |
| DC-In | 12V | ||
| DC-Output | 12V | - | |
| IP65 | LIP65 front panel protection | ||
| Dimension (W x H x D) | 354 x 327 x 237 mm, Stand: 237 x 200 mm | ||
| Weight | 5.2KG (Net weight) / 6.9KG (Gross weight) | ||
| Operating Temp | 0 ~ 40° C | ||
| Relative Humidity | 10 ~ 90% @ 40° C | ||
| Shock | L10G peak acceleration (11ms duration) | ||
| Vibration | 5~500Hz 0.5Grms, random | ||
| EMC / Safety | CE, CCC, UL, FCC, CB/LVD, VCCI, BSMI | ||
| OS Support | POSReady 7, Windows 7 Pro, Windows 8.1 Pro (64-bit), Windows 10 IoT Enterprise, Linux Kernel 3.13 or above Android 4.4 (UPOS-211D series supports Android; UPOS-211F series does not support Android | ||
| EMC / Safety | CE, CCC, UL, FCC, CB/LVD, VCCI, BSMI | ||
DeviceOn/iService Remote Device Management
| Operating System | Windows 10 |
| Common Controls (Reboot, Shutdown) | ✓ |
| Remote desktop | ✓(VNC) |
| Audio controls | ✓ |
| Connection Status | ✓ |
| Hardware Status | ✓ |
| Hard Disk Status | ✓ |
| Batch Operation Support | ✓ |
| OTA Storage Management | FTP |
| OTA Software Updates | ✓ |
| Software Watchlist | ✓ |
| Software Start/Stop | ✓ |
| Peripherals Watchlist | ✓ |
