| Config |
CPU |
Intel® Celeron® J4125 - 2.0GHz Fan- less (7th Gen) |
Intel® Celeron® J6412 - 2.0GHz Fan-less (11th Gen) |
Intel® CoreTM i3-1115G4 / I5-1135G7 – Tiger Lake CPU (11th Gen) |
| |
Ram |
4Gb DDR4 – 2400Mhz (Opt 8Gb ) |
4Gb DDR4 - 3200Mhz (Max 16Gb ) |
4Gb DDR4 3200MHz (Max 16Gb) |
| |
SSD |
128Gb SSD MSATA |
128Gb MSATA SSD |
128Gb M2 SSD |
| Screen |
Screen Size |
15.1” |
| |
Interface |
LVDs |
| |
Resolution |
1024*768 |
| |
Brightness |
220-250nits |
| Touch |
Touch Panel |
Capacitive , 10 Points, IP54 |
| |
OS Support |
Win 10, 11, Linux |
Win 10, 11, Linux |
Win 10, 11, Linux |

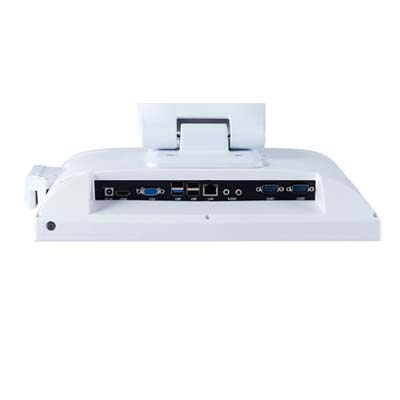

| Interfaces |
RS232 |
2 (Powered) |
2 (Powered) |
2 (Powered) – Com 2, Com 3 |
| |
USB |
2 x USB 2.0, 2 x USB 3.0 ( I/O), 3 x USB 2.0 |
2 x USB 2.0, 2 x USB 3.0 ( I/O), 3 x USB 2.0 |
2 x USB 2.0, 2 x USB 3.0 ( I/O), 3 x USB 2.0 |
| |
HDMI |
2 |
1 |
1 |
| |
VGA |
1 |
1 |
1 |
| |
Audio |
1 |
1 |
1 |
| |
LAN |
100M |
1000M |
1000M |
| |
Speakers |
Optional |
| |
PCIE / M2 |
1 (WIFI OR 4G) |
1 x M2 ( For WIFI OR 4G) |
1 x M2 ( For WIFI OR 4G) |
| Adapter |
Power Adapter |
12V, 5A |
12V, 5A |
12V, 5A |
| |
Colour |
Rubber Paint Black or Pure White |
| Optional |
| |
VFD Customer Display |
2*20, USB or RS232, 5V |
| |

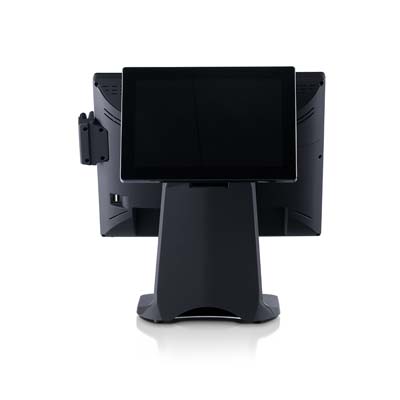

Second Display |
10.1inch without Touch screen |
| |
MSR |
3 Track, USB |
| |
ibutton Reader |
Yes |
| |
Wi-Fi |
802.11b/g/n/ac |
| |
Bluetooth |
5.0 |
