| Config |
CPU |
Intel® Celeron® J4125 - 2.0GHz Fanless |
Intel CPU CORE I3 I5 |
| |
Ram |
4Gb DDR4 SO DIMM(Opt 8Gb ) |
4Gb DDRIII (Opt 8Gb ) |
| |
EMMC/SSD/HDD |
64Gb SSD (Opt 128Gb ) MSATA |
64Gb SSD (Opt 128Gb )MSATA |
| Screen |
Screen Size |
15.6 |
15.6 |
| |
Interface |
EDP |
EDP |
| |
Resolution |
1366*768 |
1366*768 |
| |
Brightness |
220-250nits ( Opt 250 - 300nits ) |
220-250nits ( Opt 250 - 300nits ) |
| Touch |
Touch Panel |
Capacitive , 10 Points, IP54 |
Capacitive , 10 Points, IP54 |
| OS |
Android |
Windows 8, 10, Linux |
Windows 7, 8,8.1, 10, Linux |
| Interfaces |
RS232 |
2 (Powered) |
1 |
| |
USB |
2 x USB 2.0, 2 x USB 3.0 ( I/O), 3 x USB 2.0 |
2 x USB 2.0, 2 x USB 3.0 ( I/O), 3 x USB 2.0 |
| |
TF Card |
- |
- |
| |
Micro USB |
- |
- |
| |
HDMI |
1 |
1 |
| |
VGA |
1 |
1 |
| |
Audio |
1 |
1 |
| |
LAN |
100M |
100M |
| |
RJ11 Cash Drawer |
- |
- |
| |
Speakers |
1 |
1 |
| |
PCIE / M2 |
1 x M2 ( For WIFI OR 4G) |
1 x PCIE ( For WIFI OR 4G) |
| Adapter |
Power Adapter |
12V, 4A |
12V,4A |
| |
Color |
Matte Black, Pearl White |
Matte Black, Pearl White |
| Optional |
| |

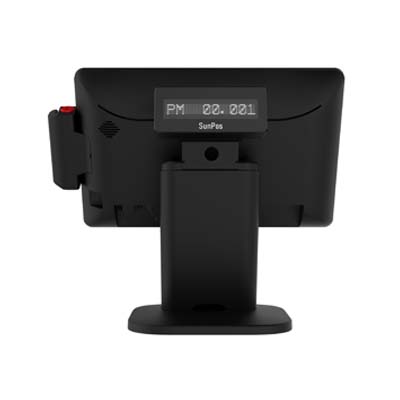

VFD Customer Display |
2*20, USB Int, 5V |
2*20, USB Int, 5V |
| |

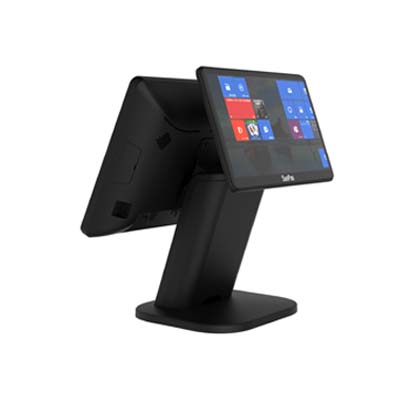

Second Display |
11.6inch without Touch screen |
11.6inch without Touch screen |
| |
MSR |
3 Track, USB |
3 Track, USB |
| |
ibutton Reader |
Yes |
Yes |
| |
RFID + NFC |
HF + NFC |
HF + NFC |
| |
Finger Print Reader |
Yes |
Yes |
| |
Battery Backup |
18.5V,2600 Mah |
18.5V,2600 Mah |
| |
Single Screen |
2 Hours Battery Back-up |
1.5 Hours Battery Back-up |
| |
Double Screen |
1 Hours Battery Back-up |
1 Hours Battery Back-up |
| |
Wi-Fi |
802.11b/g/n/ac |
802.11b/g/n/ac |
| |
Bluetooth |
4.0 |
4.0 |
| |
3G/4G Sim Card |
4G |
4G |
