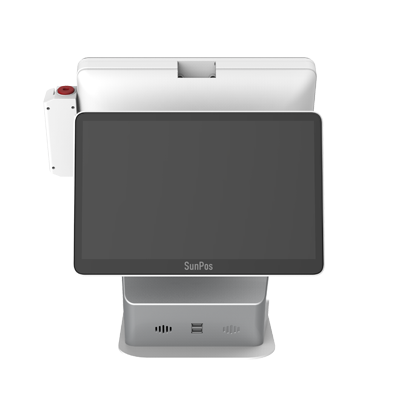

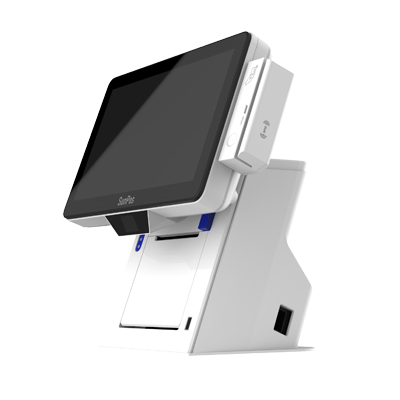

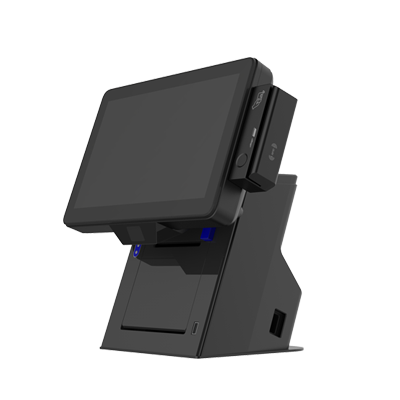

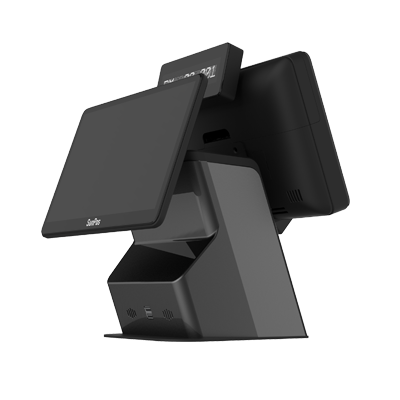

POSIQ PQ-11AE6

  • 11.6”, 15.6” HD Display
  • Choice of Configuration: RK3566, RK3568
  • Projected Capacitive Touch screen
  • Built-in 80mm Thermal Receipt Printer with Auto cutter, 250mm/sec
  • Combo Card Reader – MSR, Fingerprint, ibutton, RFID+NFC
  • 11.6inch Second Display with or without touch screen
  • Built-in 2D Scanner
  • Wi-Fi 2.4GHz, Bluetooth 5.0
  • 4G SIM Card Support
  • Rechargeable Battery support for 1.5hrs to 3hrs
  • Integrated Power Adapter
  • Built-in Cash Drawer Interface
  • Easily replaceable Printer
  • Upgradeable Second Display
  • Compact Foot Print
Configuration CPU RK3566, Quad-core RK3568, Quad-core Cortex-A55, Mali-G52 EE – 2.0Ghz
  Ram 2Gb DDR4 Ram 4Gb DDR4 Ram
  EMMC/SSD 16Gb EMMC 32Gb EMMC
Screen Screen Size 11.6”, 15.6” 11.6”, 15.6”
  Interface EDP EDP
  Resolution 1366*768 (1920*1080 Optional ) 1366*768 (1920*1080 Optional )
  Brightness 220-250nits 220-250nits
Touch screen Touch Panel Projected Capacitive Projected Capacitive
  Key Difference Single Display Support Dual Display Support
  Wi-Fi & Bluetooth 2.4Ghz, 5.0 2.4Ghz, 5.0
OS Android Android 11 with GMS Android 11 with GMS
Interfaces RS232 1 1
  USB 4 4
  TF Card 1 1
  Micro USB 1 1
  HDMI NA 1
  Audio 1 1
  LAN 1 1
  RJ11 Cash Drawer 1 1
  Speakers 1 1
  Color Matte Black or Pearl White
Adapter Power Adapter 24V, 4A
POS Printer
  Speed 250mm/sec
  Interface USB + RS232
  Cutter Partial Cut
  Paper Size 80, 58mm
Optional Accessories
  Scanner 2D/1D Barcode scanner
  Second Display 11.6” Second Display with or without Touch screen, HDMI Int
  SIM Card 4G
  Card Reader MSR, MSR+RFID+NFC, MSR+FP, MSR+ibutton
  Battery 18.5v, 2600Mah, 1.5hr to 2hr working time
  GW 8.5kg
  Box Dimension 51*33.5*46cm
